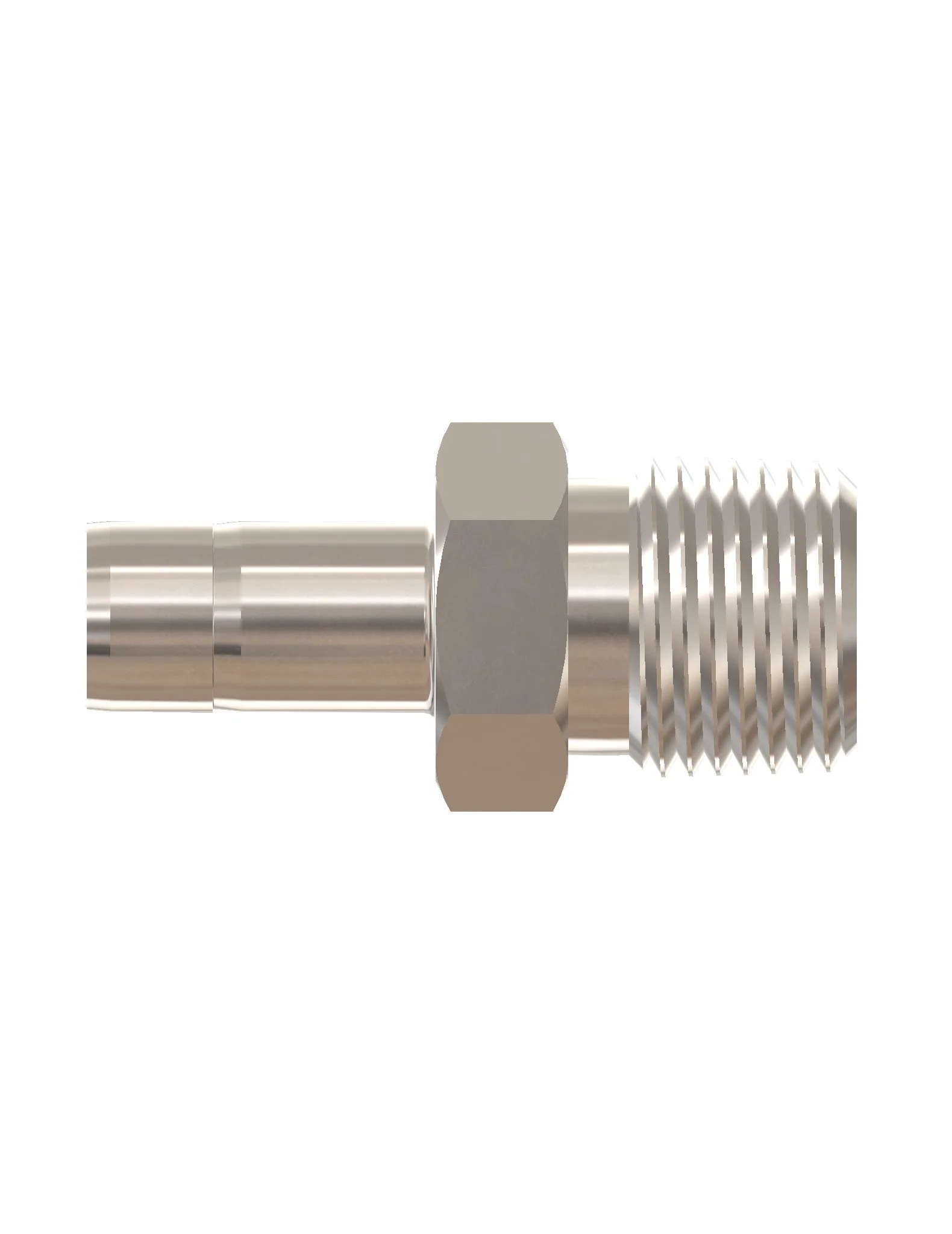

DATPM
adapter tube to male Pipe
Add SS- for Stainless Steel , S- for Carbon Steel, or B- for Brass to the beginning of the part number to specify the material desired.
| CBC-Lok Part Number |
Interchanges With |
Interchanges With |
CS-Lok Part Number |
Interchanges With |
Tube O.D |
Pipe End NPT | Thru Hole |
Body Hex |
|---|---|---|---|---|---|---|---|---|
| 2-DATPM-2 | 2-TA-1-2 | 2MA2N | 2-SATPM-2 | 2-2 T2HF | 1/8 | 1/8 | 0.08 | 7/16 |
| 2-DATPM-4 | 2-TA-1-4 | 2MA4N | 2-SATPM-4 | 2-4 T2HF | 1/8 | 1/4 | 0.08 | 9/16 |
| 4-DATPM-2 | 4-TA-1-2 | 4MA2N | 4-SATPM-2 | 4-2 T2HF | 1/4 | 1/8 | 0.17 | 7/16 |
| 4-DATPM-4 | 4-TA-1-4 | 4MA4N | 4-SATPM-4 | 4-4 T2HF | 1/4 | 1/4 | 0.17 | 9/16 |
| 4-DATPM-6 | 4-TA-1-6 | 4MA6N | 4-SATPM-6 | 4-6 T2HF | 1/4 | 3/8 | 0.17 | 11/16 |
| 4-DATPM-8 | 4-TA-1-8 | 4MA8N | 4-SATPM-8 | 4-8 T2HF | 1/4 | 1/2 | 0.17 | 7/8 |
| 5-DATPM-4 | 5-TA-1-4 | 5MA4N | 5-SATPM-4 | 5-4 T2HF | 5/16 | 1/4 | 0.22 | 9/16 |
| 6-DATPM-2 | 6-TA-1-2 | 6MA2N | 6-SATPM-2 | 6-2 T2HF | 3/8 | 1/8 | 0.19 | 7/16 |
| 6-DATPM-4 | 6-TA-1-4 | 6MA4N | 6-SATPM-4 | 6-4 T2HF | 3/8 | 1/4 | 0.27 | 9/16 |
| 6-DATPM-6 | 6-TA-1-6 | 6MA6N | 6-SATPM-6 | 6-6 T2HF | 3/8 | 3/8 | 0.27 | 11/16 |
| 6-DATPM-8 | 6-TA-1-8 | 6MA8N | 6-SATPM-8 | 6-8 T2HF | 3/8 | 1/2 | 0.27 | 7/8 |
| 8-DATPM-4 | 8-TA-1-4 | 8MA4N | 8-SATPM-4 | 8-4 T2HF | 1/2 | 1/4 | 0.28 | 9/16 |
| 8-DATPM-6 | 8-TA-1-6 | 8MA6N | 8-SATPM-6 | 8-6 T2HF | 1/2 | 3/8 | 0.38 | 11/16 |
| 8-DATPM-8 | 8-TA-1-8 | 8MA8N | 8-SATPM-8 | 8-8 T2HF | 1/2 | 1/2 | 0.38 | 7/8 |
| 8-DATPM-12 | 8-TA-1-12 | - | 8-SATPM-12 | - | 1/2 | 3/4 | 0.38 | 1-1/16 |
| 10-DATPM-6 | - | - | 10-SATPM-6 | - | 5/8 | 3/8 | 0.38 | 11/16 |
| 10-DATPM-8 | 10-TA-1-8 | 10MA8N | 10-SATPM-8 | 10-8 T2HF | 5/8 | 1/2 | 0.47 | 7/8 |
| 12-DATPM-8 | 12-TA-1-8 | 12MA8N | 12-SATPM-8 | 12-8 T2HF | 3/4 | 1/2 | 0.47 | 7/8 |
| 12-DATPM-12 | 12-TA-1-12 | 12MA12N | 12-SATPM-12 | 12-12 T2HF | 3/4 | 3/4 | 0.58 | 1-1/16 |
| 12-DATPM-16 | 12-TA-1-16 | 12MA16N | 12-SATPM-16 | 12-16 T2HF | 3/4 | 1 | 0.58 | 1-3/8 |
| 14-DATPM-8 | - | - | 14-SATPM-8 | - | 7/8 | 1/2 | 0.47 | 15/16 |
| 16-DATPM-12 | 16-TA-1-12 | 16MA12N | 16-SATPM-12 | 16-12 T2HF | 1 | 3/4 | 0.63 | 1-1/16 |
| 16-DATPM-16 | 16-TA-1-16 | 16MA16N | 16-SATPM-16 | 16-16 T2HF | 1 | 1 | 0.80 | 1-3/8 |
| 20-DATPM-16-NF | 20-TA-1-16 | - | - | - | 1-1/4 | 1 | 0.88 | 1-3/8 |
| 20-DATPM-20-NF | 20-TA-1-20 | 20MA20N | - | - | 1-1/4 | 1-1/4 | 1.02 | 1-3/4 |
| 20-DATPM-24-NF | - | - | - | - | 1-1/4 | 1-1/2 | 1.02 | 2-1/8 |
| 24-DATPM-24-NF | 24-TA-1-24 | 24MA24N | - | - | 1-1/2 | 1-1/2 | 1.25 | 2-1/8 |
| 32-DATPM-32-NF | 32-TA-1-32 | 32MA32N | - | - | 2 | 2 | 1.72 | 2-3/4 |
